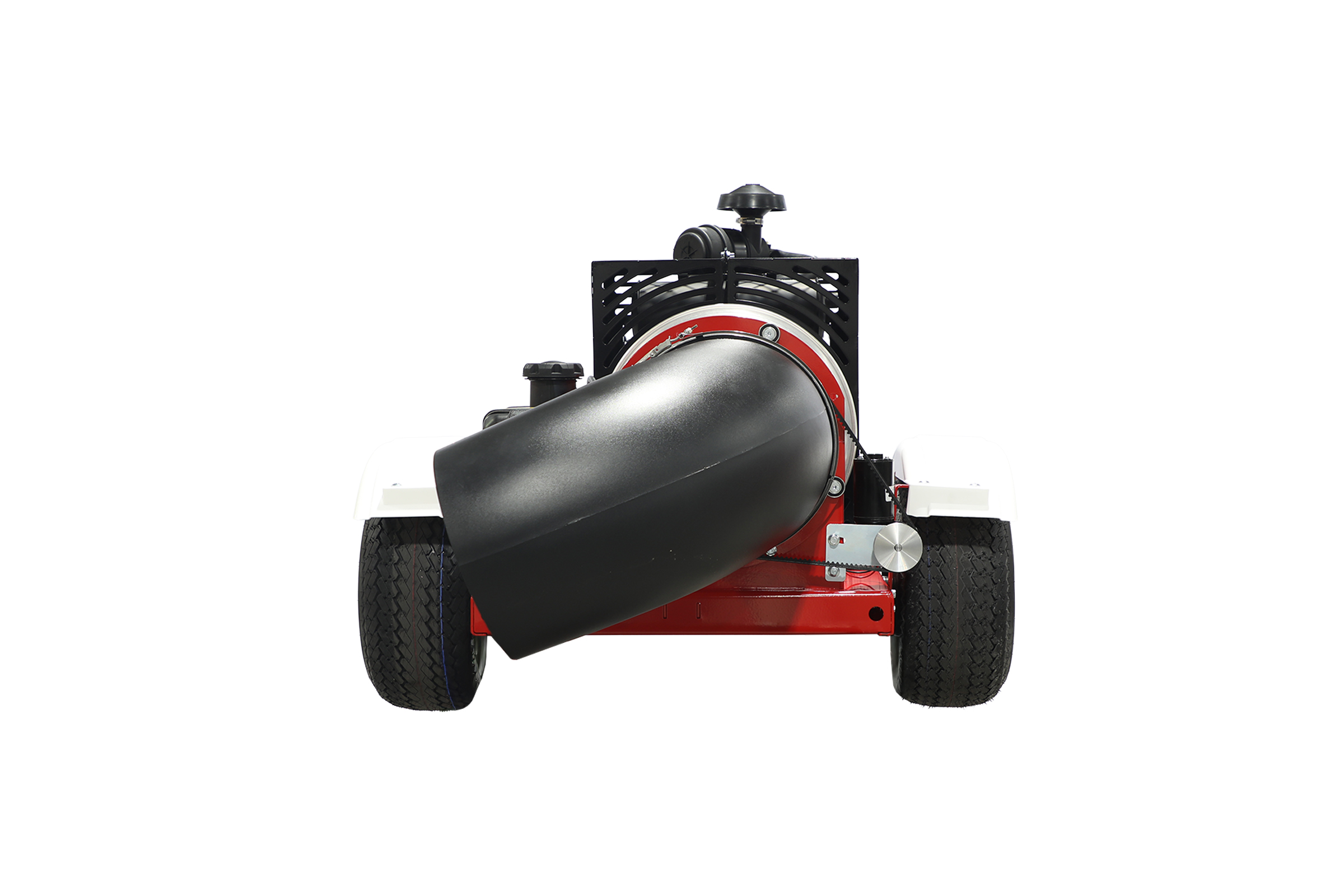

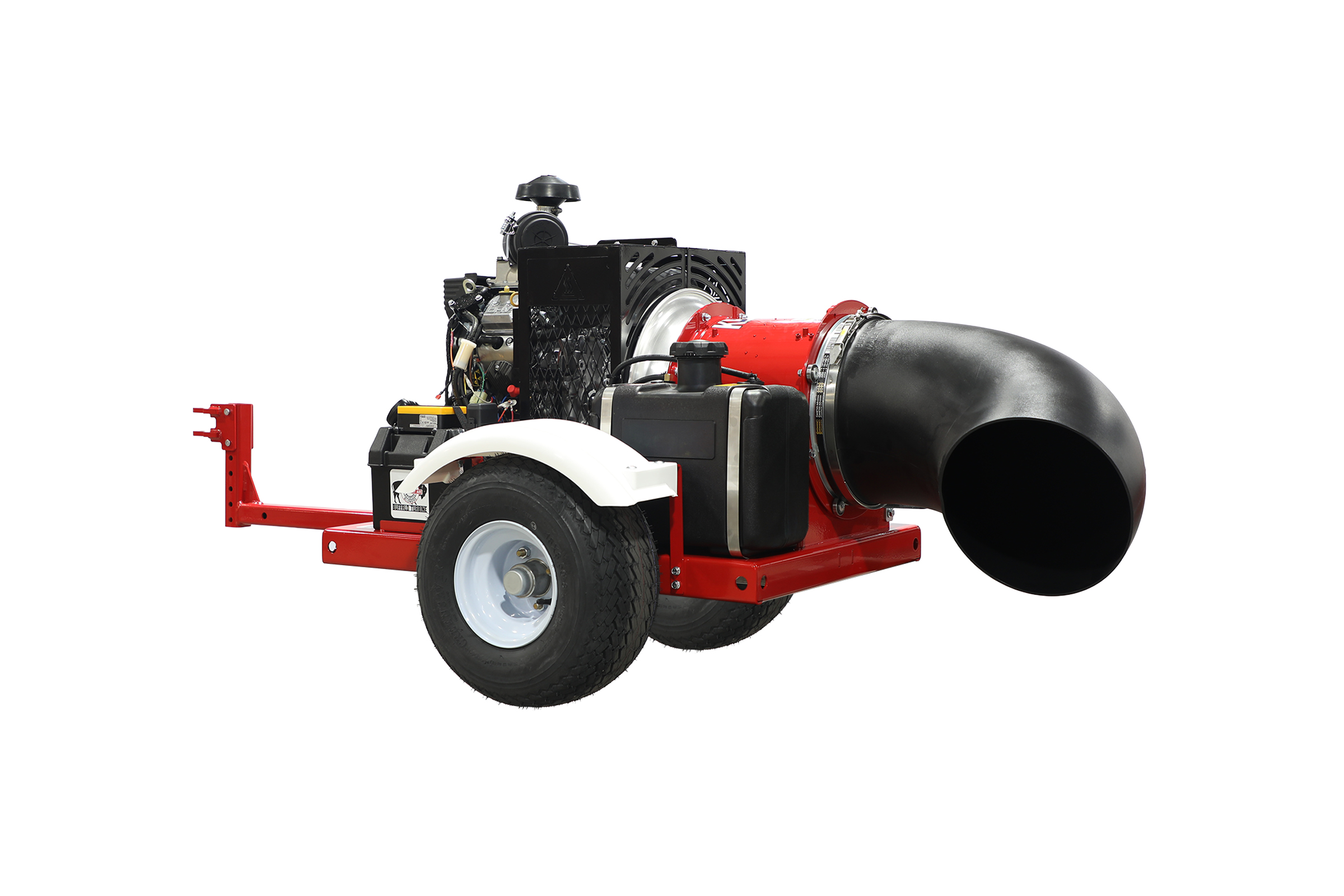

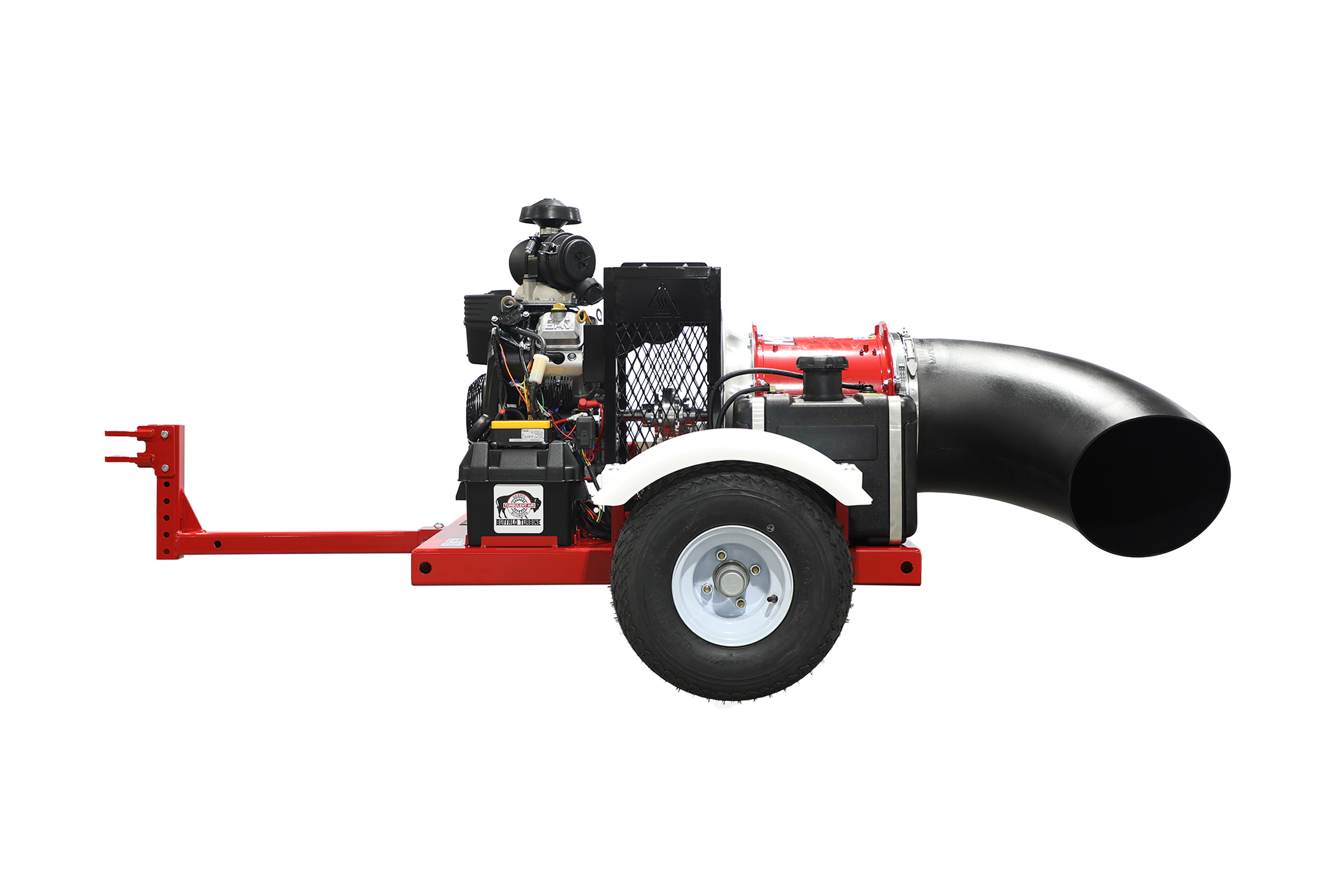

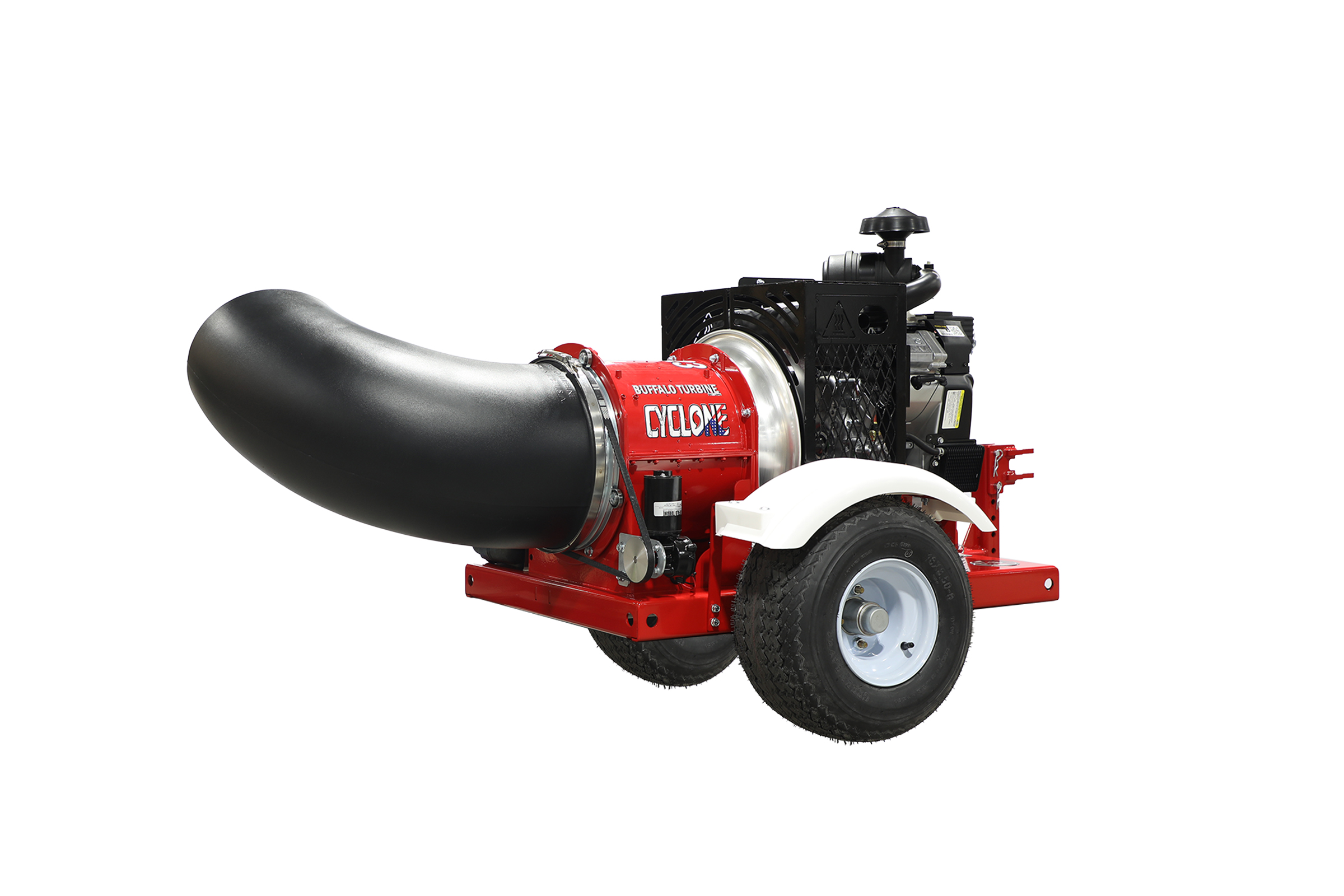

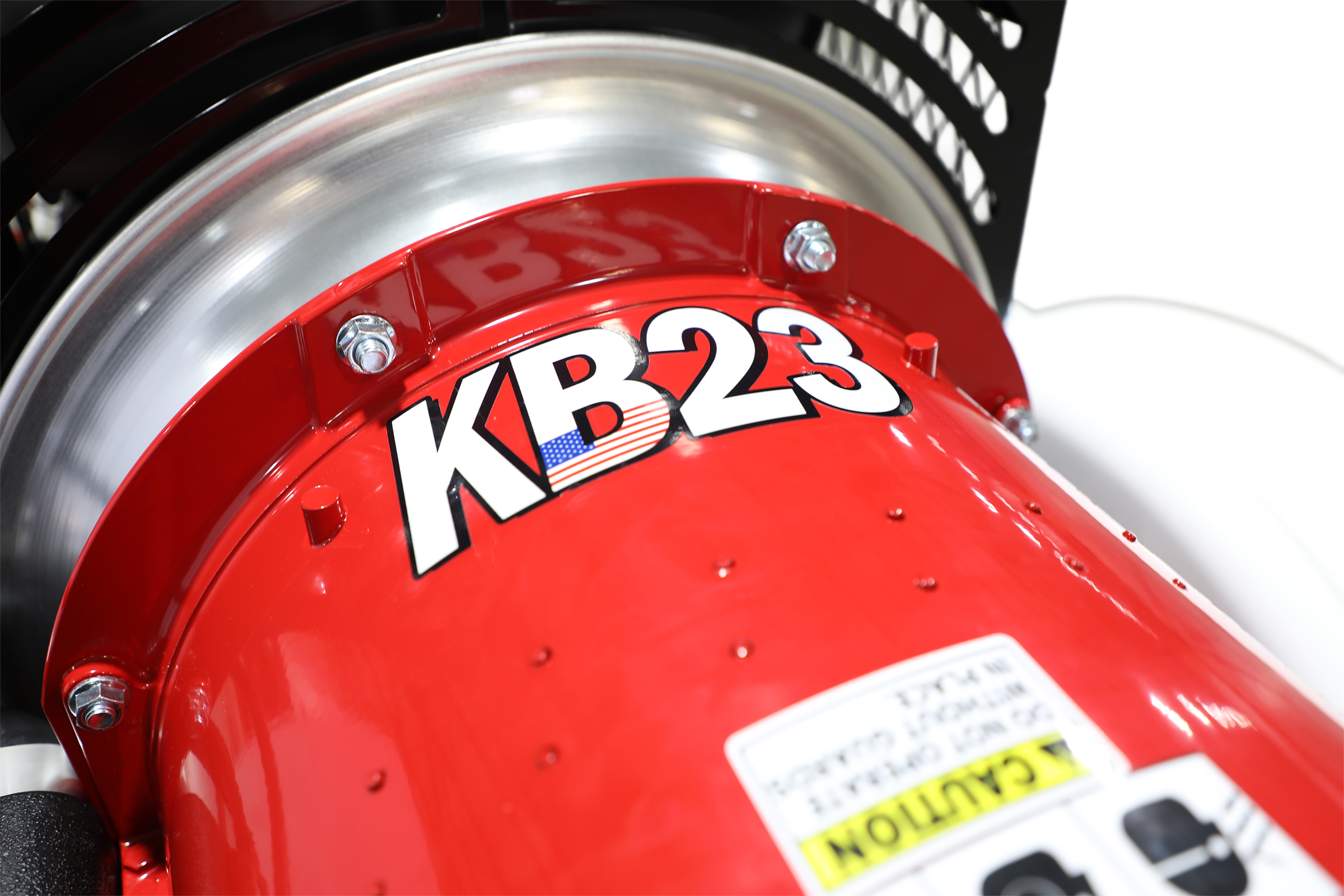

Cyclone KB23

Model: BT-CKB23

Same top operating features as our Cyclone KB7 with slightly less power and strategically priced.
Wireless 10 button remote control providing the most control in the industry.
360 degree nozzle rotation with auto positioning.
Adjustable height and length hitch to match many different tow vehicles.
Compact lightweight design allowing work and storage in tight areas.

Connect with a Sales Expert

Downloads

Machine Information + Options Manuals & Support

SPECS & COMPARISON

Spec	Cyclone KB23	Compare a Model
Type	Tow Behind
Debris Type	Dust, Grass, Leaves, Sand
Acreage	4 to 6

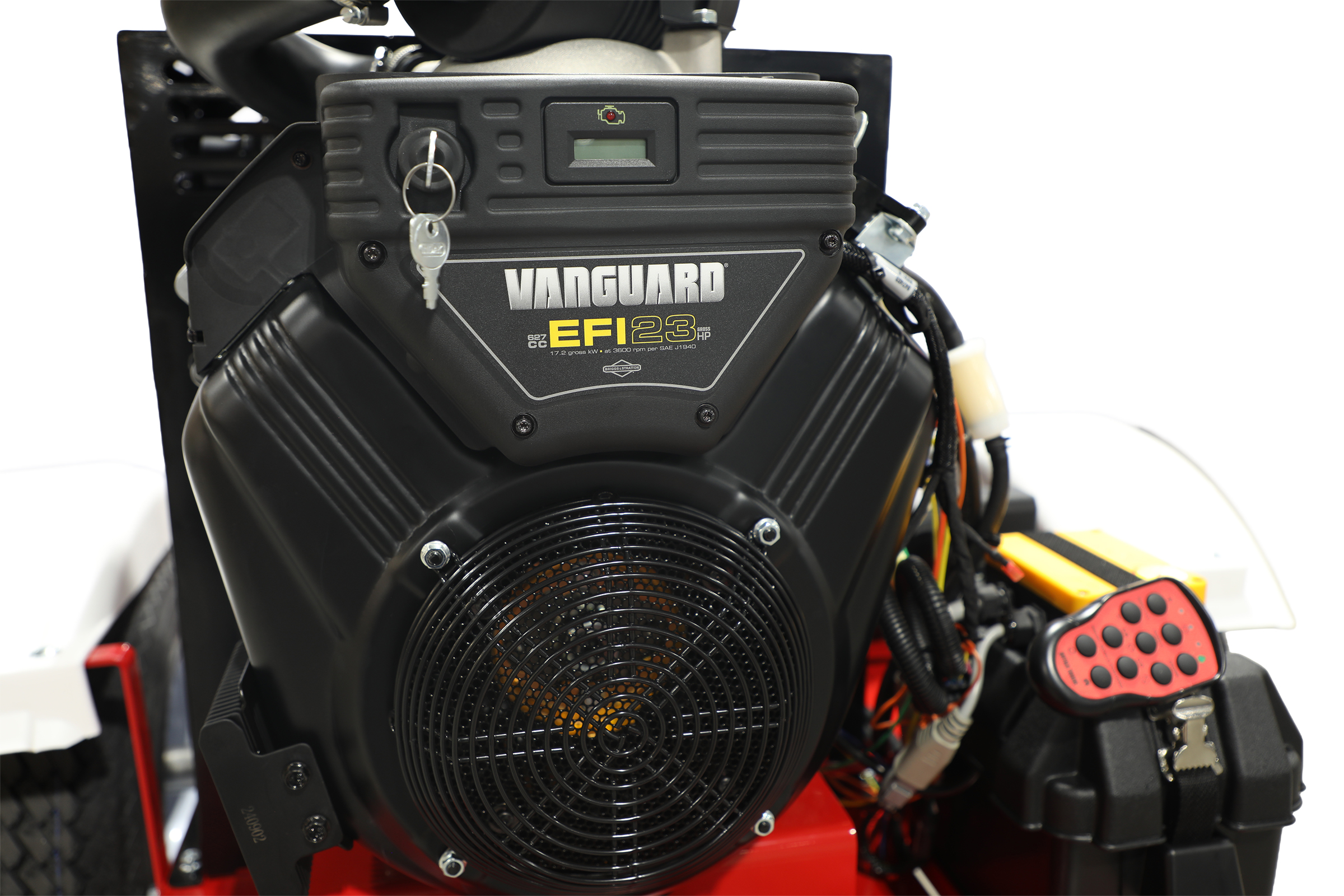

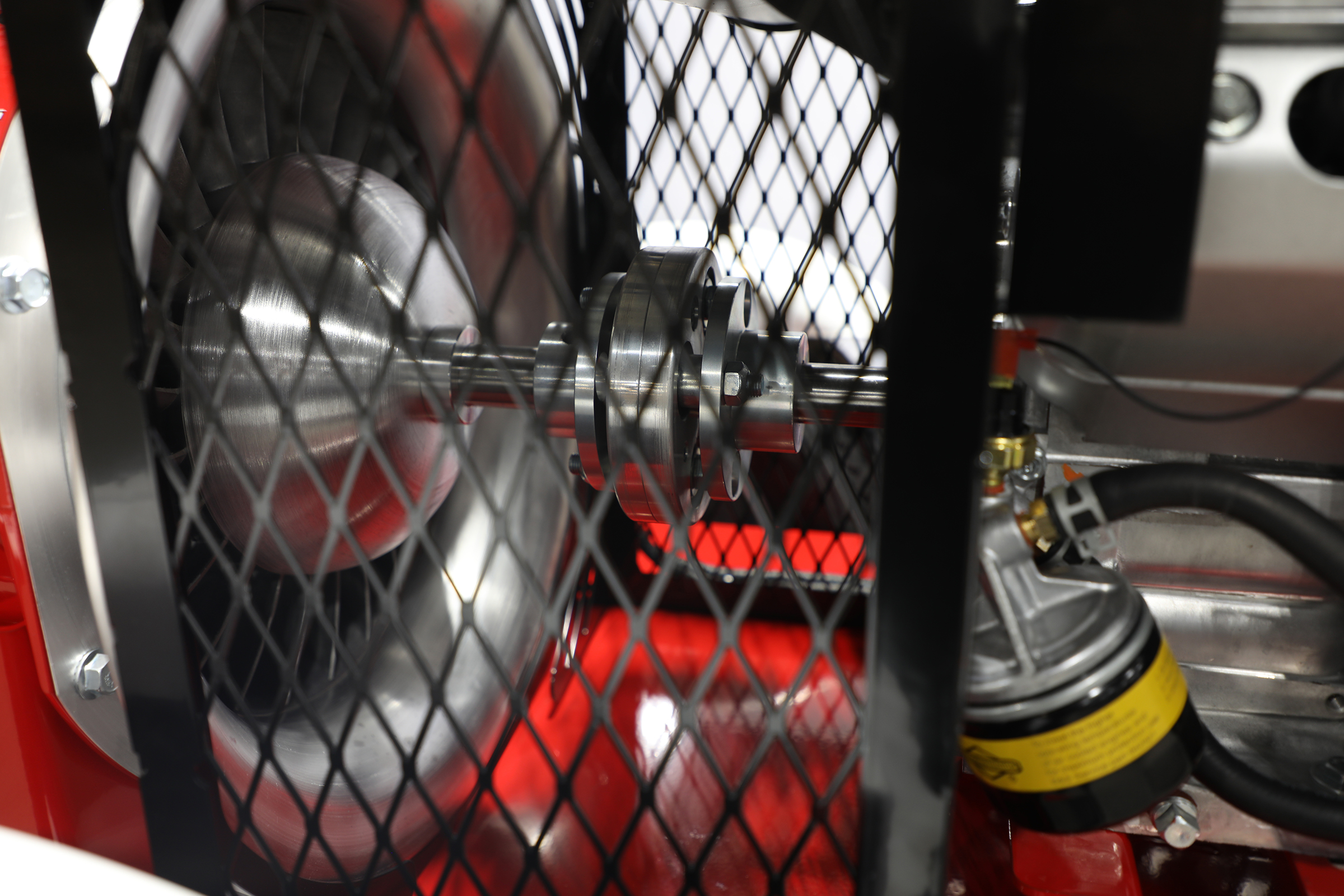

Input Power	23 HP EFI Gasoline Engine
Start / Stop Control	Wireless remote start / stop
Throttle Control	Wireless remote
Nozzle	Aerospace Polymer Nozzle
Nozzle Outlet Size	Approx. 12 in
Nozzle Control	360 degree, auto position
Remote	Hand held, 10 function push button, water resistant
Fuel Capacity	6 gal

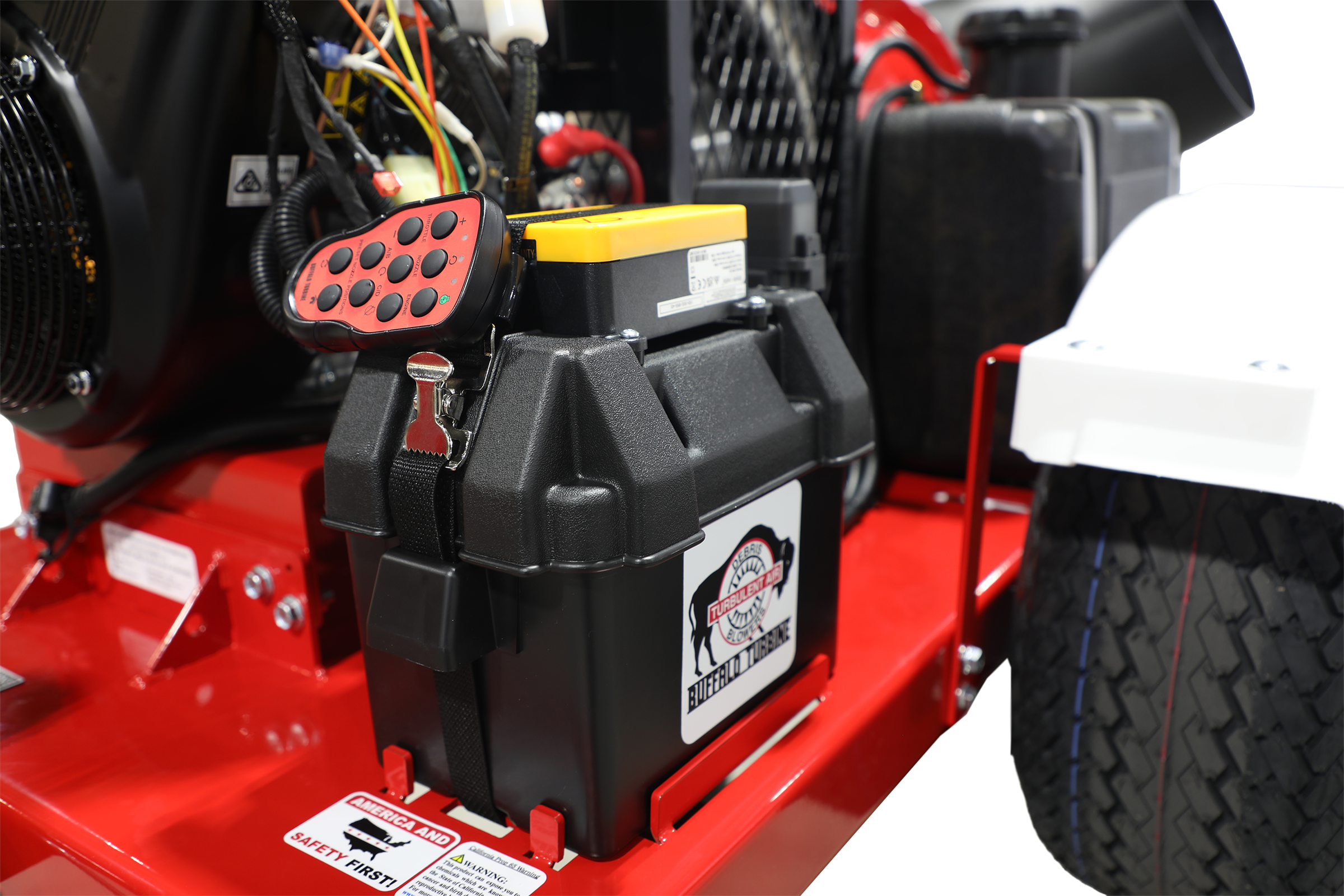

Battery	12 volt, 300 cold cranking amps
Trailer	Bolt-on trailer package with adjustable hitch
Tires	18x8.50-8
Mounting	Skid mount or tow behind trailer
Overall Length w/ Nozzle	112 in
Frame Width w/ Wheels	48 in
Height	39 in
Skid Mount - Frame Length	48in with hitch removed.
Skid Mount - Overall Length w/ Nozzle	75in with hitch removed.
Skid Mount - Frame Width	28 in
Weight	427 lbs (193 kg)
Shipping Weight	505 lbs (229 kg)
Shipping Box Size	53 in (135 cm) x 37 in (94 cm) x 49 in (124 cm)
Machine Warranty	10 Year Manufacturer Warranty
Engine / Motor Warranty	3 Year Engine Manufacturer's Warranty
Prop 65	WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Compare a Model

Spec

Cyclone KB23

Type

Tow Behind

Debris Type

Dust, Grass, Leaves, Sand

Acreage

4 to 6

Input Power

23 HP EFI Gasoline Engine

Start / Stop Control

Wireless remote start / stop

Throttle Control

Wireless remote

Nozzle

Aerospace Polymer Nozzle

Nozzle Outlet Size

Approx. 12 in

Nozzle Control

360 degree, auto position

Remote

Hand held, 10 function push button, water resistant

Fuel Capacity

6 gal

Battery

12 volt, 300 cold cranking amps

Trailer

Bolt-on trailer package with adjustable hitch

Tires

18x8.50-8

Mounting

Skid mount or tow behind trailer

Overall Length w/ Nozzle

112 in

Frame Width w/ Wheels

48 in

Height

39 in

Skid Mount - Frame Length

48in with hitch removed.

Skid Mount - Overall Length w/ Nozzle

75in with hitch removed.

Skid Mount - Frame Width

28 in

Weight

427 lbs (193 kg)

Shipping Weight

505 lbs (229 kg)

Shipping Box Size

53 in (135 cm) x 37 in (94 cm) x 49 in (124 cm)

Machine Warranty

10 Year Manufacturer Warranty

Engine / Motor Warranty

3 Year Engine Manufacturer's Warranty

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Connect with a Sales Expert

Features

Remote Start/Stop/Throttle/Nozzle.

Control engine start/stop/throttle and nozzle remotely from the operator position.

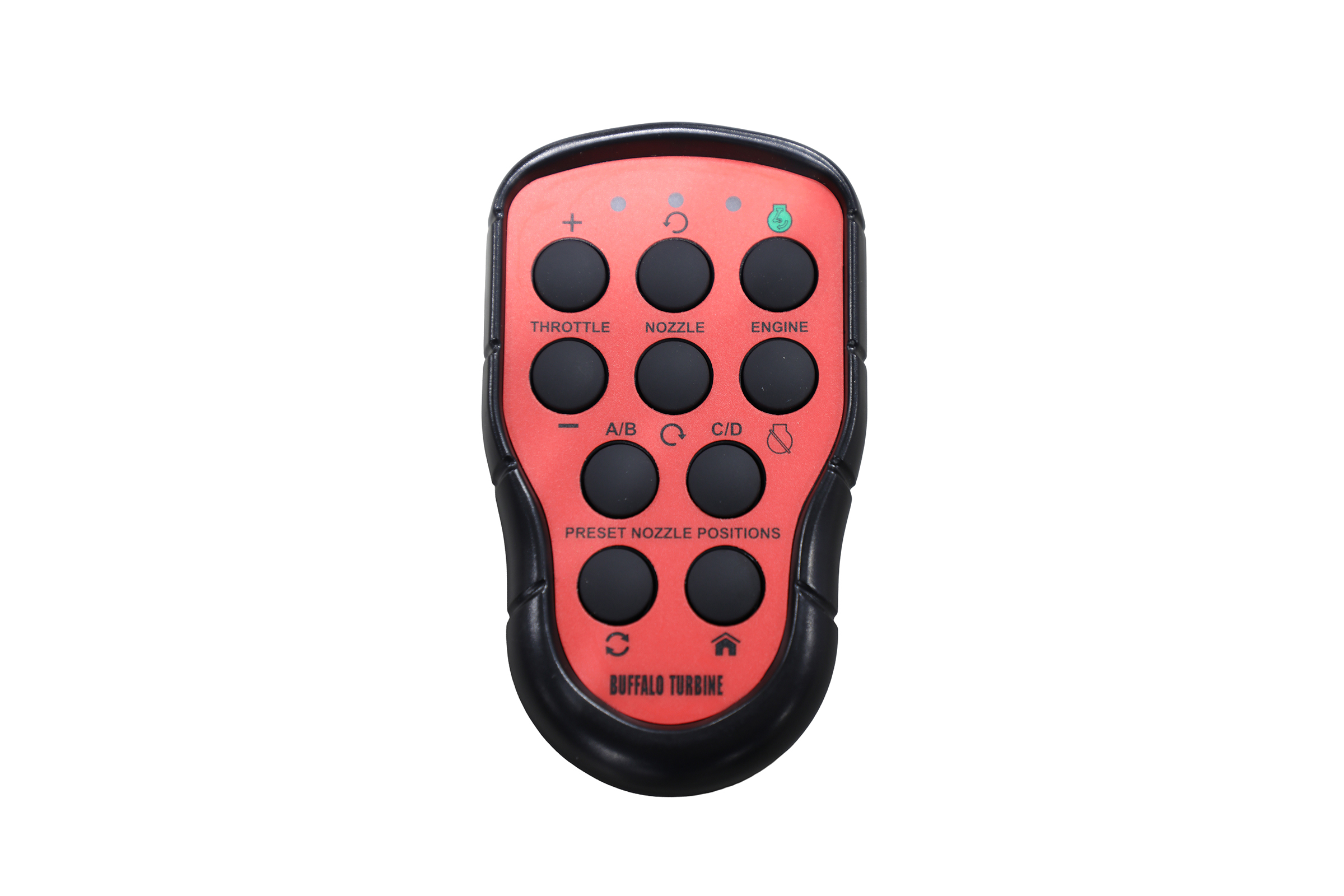

10 Button Wireless Remote.

Providing the most control in the industry.

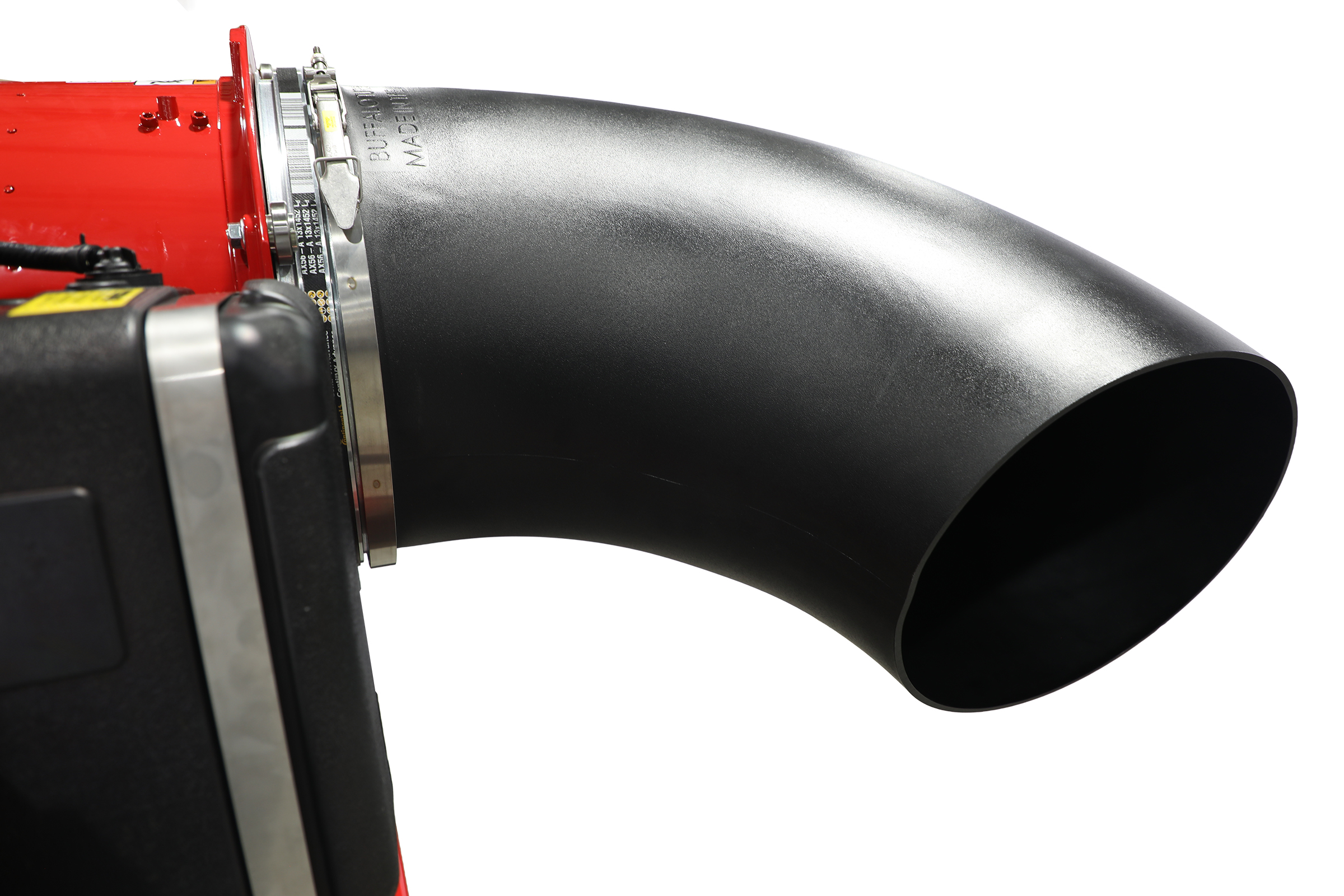

360 degree Nozzle Rotation without Power Loss.

360 degree nozzle rotation providing unlimited blowing angles. Allowing the operator to set the ideal blowing angle for the desired debris to be moved.

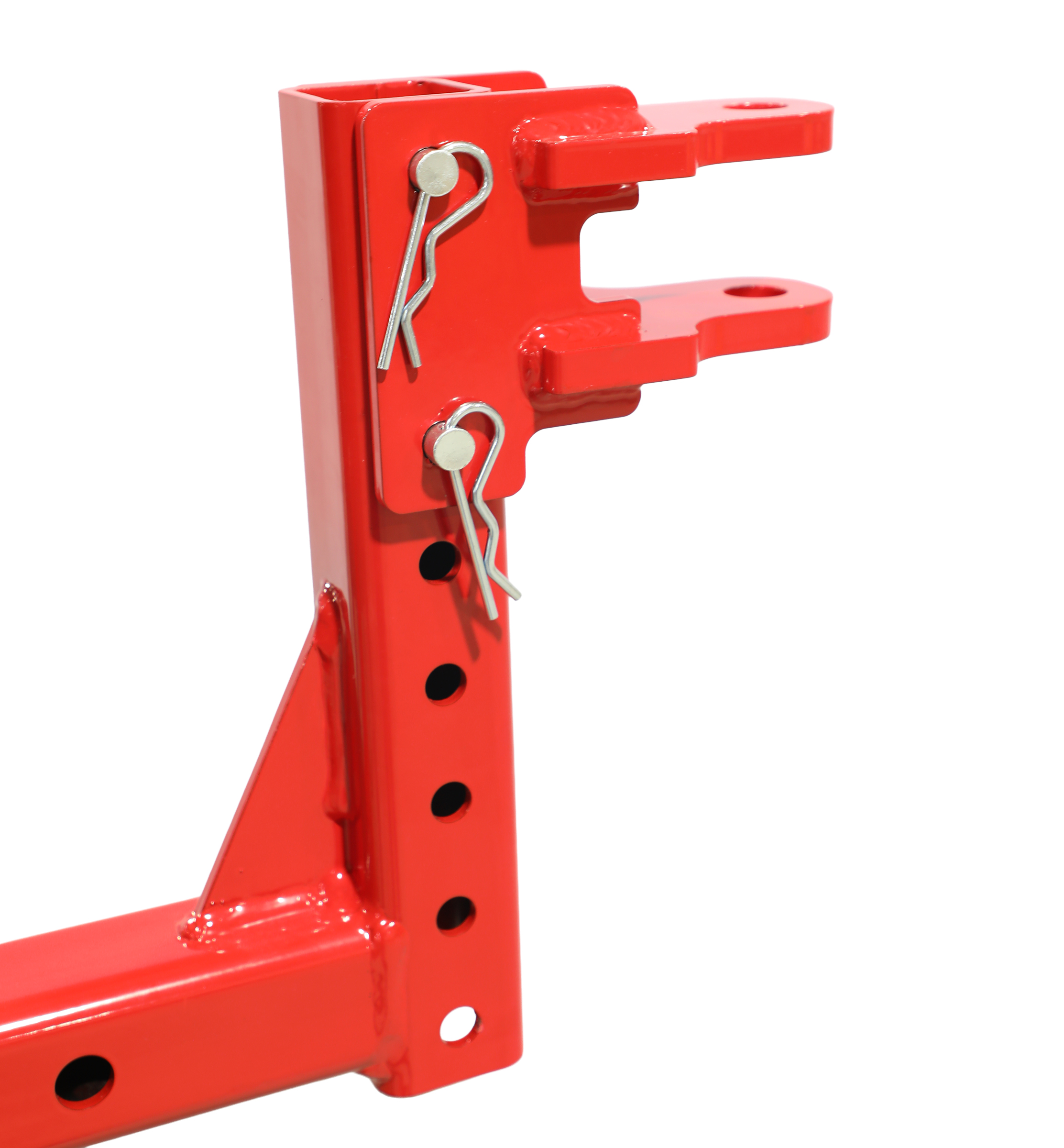

Adjustable Height and Length Hitch.

Adjustable height and length hitch (no tools required) to match various tow vehicles and minimize space required during storage.

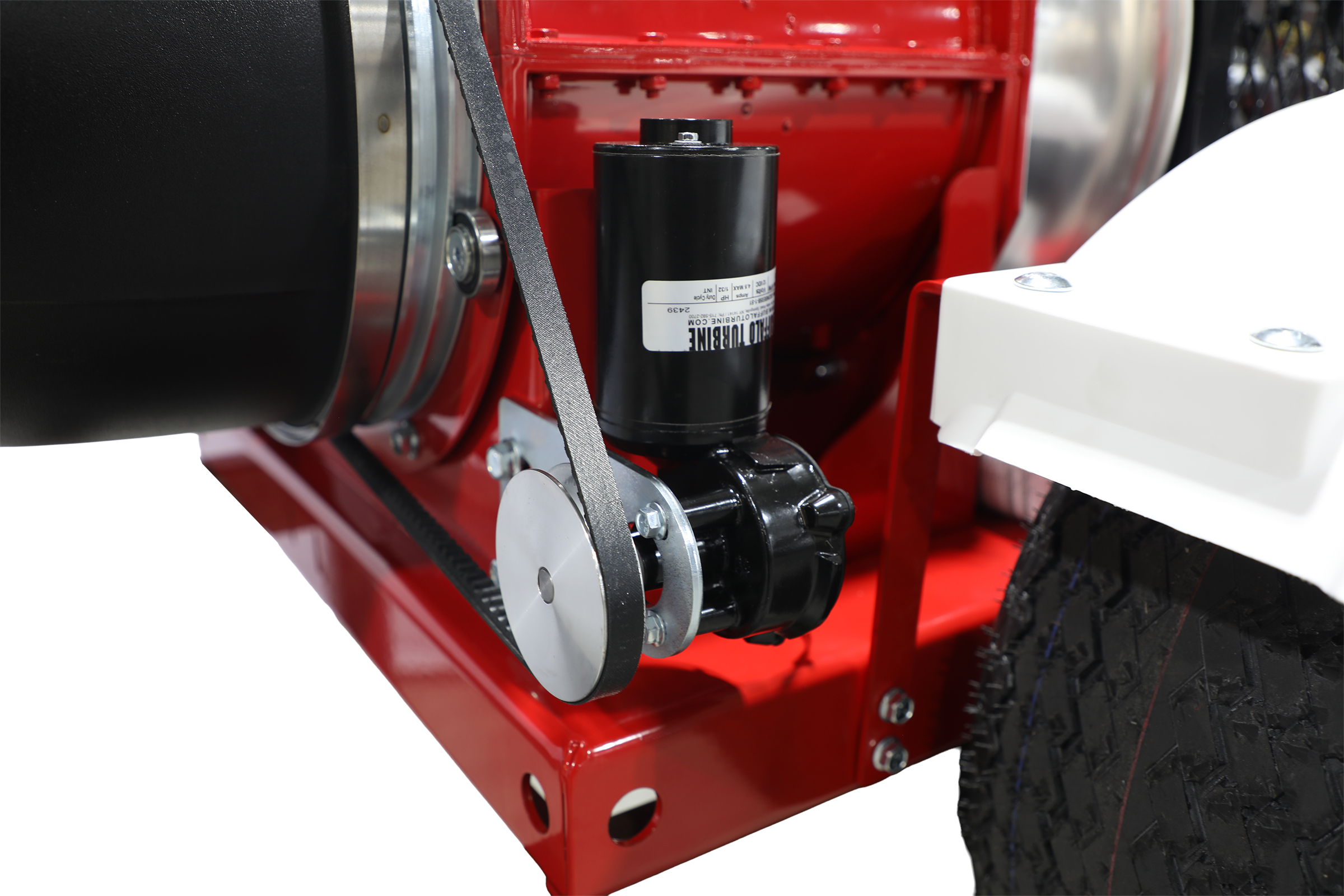

Auto Nozzle Positioning.

Auto nozzle positioning provides quick location of ideal blowing angles for all types of debris.
